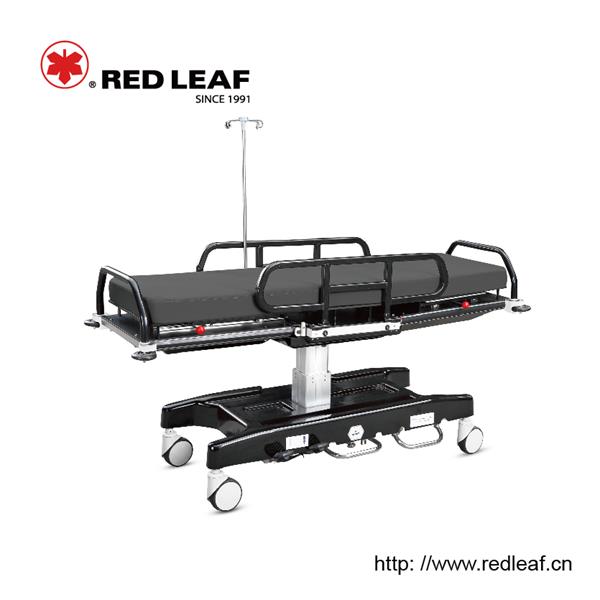

YQC-3T Hydraulic Adjustable PVC Mat Emergency Bed

Features
1. This PVC mat emergency bed is primarily used in C-arm X-ray operations, with no need of moving the patient.
2. The hydraulic emergency bed is equipped with hydraulic lifting mechanism.
3. Height of our PVC mat emergency bed can be adjusted freely between 72cm and 92cm.

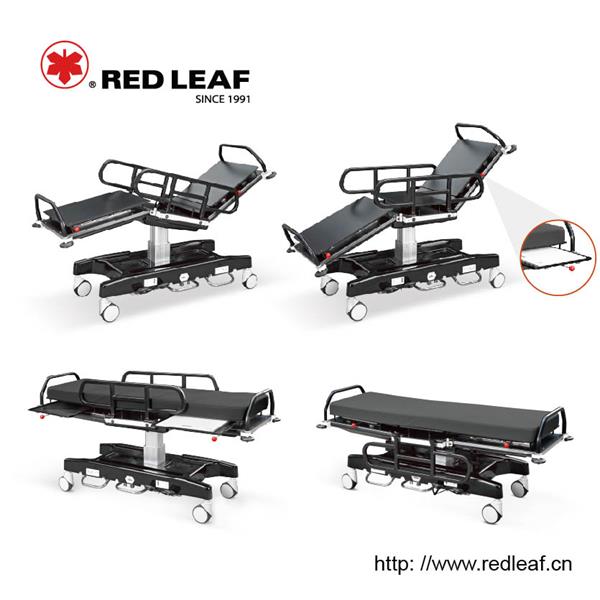

4. Both the front and rear ends of the bed can incline 15°.
5. Main frame of our hydraulic emergency bed is made of steel and aluminum alloy.
6. Mat (thickness: 100mm) of this PVC mat emergency bed uses high-density polyethylene-coated PVC, comfortable and durable.
7. The bed is also designed with 90cm I.V. stand.
8. Central control brake allows enhanced safety of the hydraulic emergency bed.
9. The universal wheels can be adjusted to make the bed move straight, at any direction or make the bed locked.
10. 2 X-ray cassettes can be equipped.
11. Wheel size: Ø150mm.
(Patent applied)

Specifications

Model	Product Size (L × W × H) (cm)		Size of Castor (mm)	Max Angle of Back	Net Weight (kg)	Load Bearing (kg)	Packing
							Quantity	Size (L × W × H) (cm)	Gross Weight (kg)
	High Position	Low Position
YQC-3T	225 × 76 × 95	225 × 76 × 70	Ø150	85º	-	250	1	-	-
