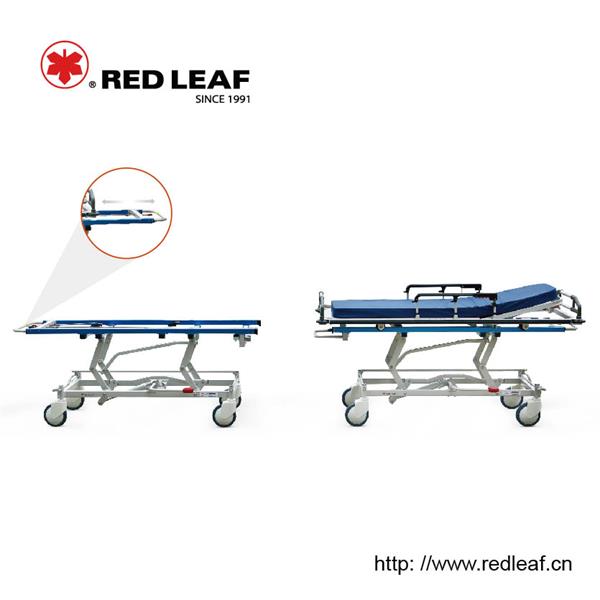

YQC-3LL Adjustable & Separable Hydraulic PVC Mat Connecting Trolley

Features
1. Base of this hydraulic connecting trolley adopts steel structure, and the stretcher part is made of high-strength aluminum alloy.
2. This PVC mat connecting trolley is used for transporting patients between operating room and ward in hospital.
3. Mat (thickness: 100mm) of the hydraulic connecting trolley uses high-density polyethylene-coated PVC, comfortable and durable.
4. The PVC mat connecting trolley is also designed with three-stage I.V. stand (maximum adjustable length: 80cm).
5. The surface can be separated from the bed, and can be used as a stretcher alone.
6. This hydraulic connecting trolley adopts hydraulic lifting mechanism, and the backrest inclination can be adjusted by gas spring.
7. The universal wheels can be adjusted to make the bed move straight, at any direction or make the bed locked.
8. Wheel size: Ø200mm.
(Patent applied)

Specifications

Model	Product Size (L × W × H) (cm)		Size of Castor (mm)	Max Angle of Back	Net Weight (kg)	Load Bearing (kg)	Packing
							Quantity	Size (L × W × H) (cm)	Gross Weight (kg)
	High Position	Low Position
YQC-3LL	200 × 74 × 93	200 × 74 × 54	Ø200	70º	80	250	1	213 × 75 × 71	88
	200 × 65 × 85	200 × 65 × 47	Ø200	-	50	250	1	205 × 67 × 47	57
