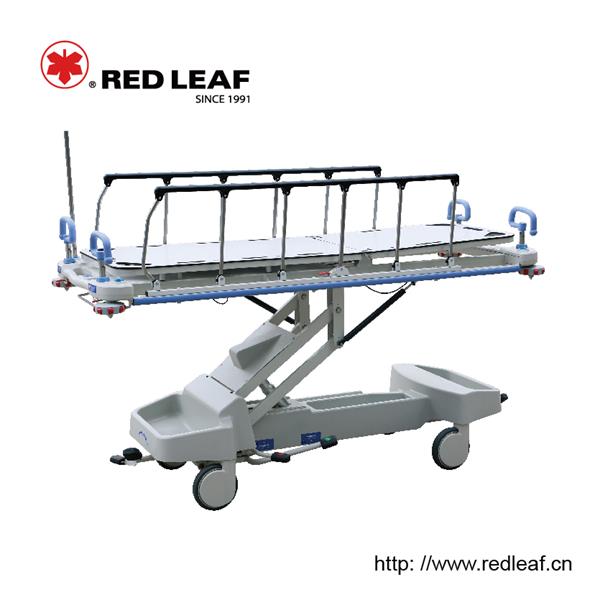

YQC-3TX Hydraulic Adjustable PVC Mat Emergency Bed

Features
1. This PVC mat emergency bed can be used in C-arm X-ray operations, with no need of moving the patient.
2. The adjustable emergency bed is equipped with hydraulic lifting mechanism.
3. Height of our PVC mat emergency bed can be adjusted freely between 68cm and 125cm.
4. The front and rear ends of the bed can incline 15° and 10° respectively.
5. Main frame of our adjustable emergency bed is made of steel and aluminum alloy.
6. Mat (thickness: 100mm) of this PVC mat emergency bed uses high-density polyethylene-coated PVC, comfortable and durable.
7. The adjustable emergency bed is also designed with guardrail and 90cm I.V. stand.
8. The universal wheels can be adjusted to make the bed move straight, at any direction or make the bed locked.
9. Wheel size: Ø200mm.

Specifications

Model	Product Size (L × W × H) (cm)		Size of Castor (mm)	Max Angle of Back	Net Weight (kg)	Load Bearing (kg)	Packing
							Quantity	Size (L × W × H) (cm)	Gross Weight (kg)
	High Position	Low Position
YQC-3TX	210 × 80 × 117	210 × 80 × 56	Ø200	70º	128	250	1	-	-
