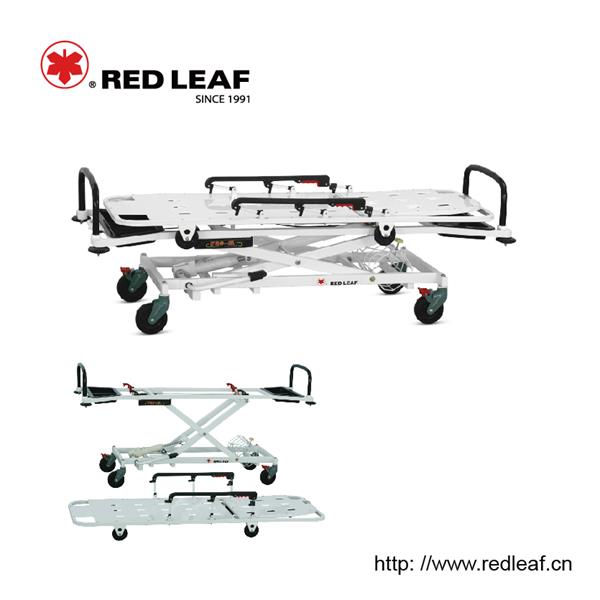

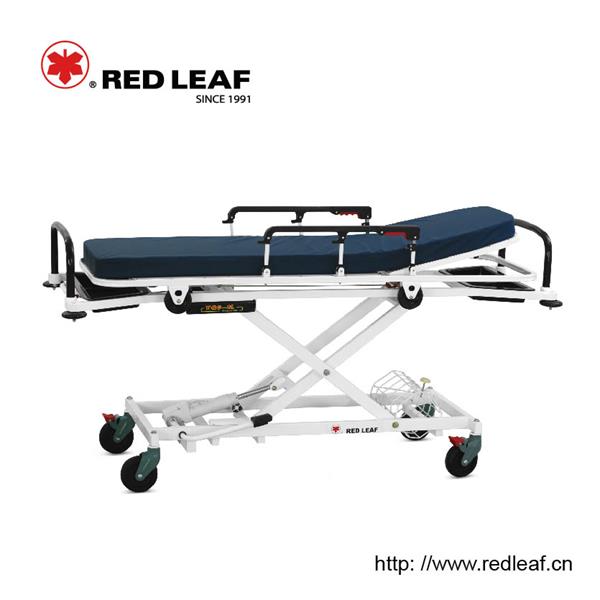

YQC-3L Adjustable & Separable Hydraulic PVC Mat Emergency Bed

Features
1. This separable PVC mat emergency bed is used in hospitals to transport patient and the wounded.
2. The surface of this adjustable hydraulic emergency bed can be separated from the bed, and can be used as a stretcher alone.
3. Height of the bed can be adjusted freely between 60cm and 85cm.
4. Mat (thickness: 100mm) of the separable PVC mat emergency bed uses high-density polyethylene-coated PVC, comfortable and durable.
5. Our adjustable hydraulic emergency bed is designed with adjustable three-stage I.V. stand (maximum adjustable length: 80cm).
6. This bed adopts hydraulic lifting mechanism.
7. Main frame of this separable PVC mat emergency bed is made of steel and high-strength aluminum.
8. Wheel size: Ø150mm.
(Patent applied)

Specifications

Model	Product Size (L × W × H) (cm)		Size of Castor (mm)	Max Angle of Back	Net Weight (kg)	Load Bearing (kg)	Packing
							Quantity	Size (L × W × H) (cm)	Gross Weight (kg)
	High Position	Low Position
YQC-3L	210 × 75 × 86	210 × 75 × 55	Ø150	70º	37	160	1	218 × 81 × 77	47
