YDC-3H Adjustable & Separable Aluminum Alloy PVC Mat Ambulance Stretcher

Features
1. This adjustable PVC mat ambulance stretcher uses high-strength aluminum alloy as the main material, and it’s treated with surface hardening.
2. The overall height can be adjusted at more than four levels to facilitate performing CPR. Inclination angle of this separable PVC mat ambulance stretcher can be set at more than 12 levels.
3. Our adjustable PVC mat ambulance stretcher is equipped with aluminum alloy guardrails and two safety belts for the convenience and safety of patient transport.
4. This separable PVC mat ambulance stretcher is designed with adjustable two-stage I.V. stand, which enjoys maximum adjustable length of 75cm.
5. Position adjustment is controlled by our patented pressure spring mechanism, safe and reliable.

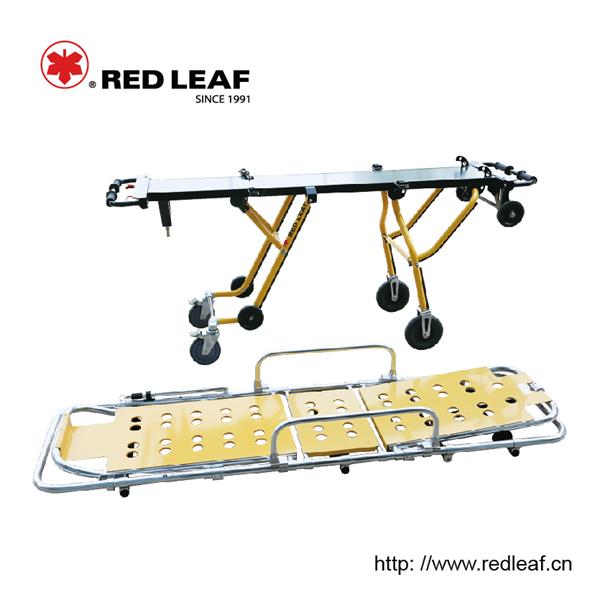

6. The adjustable PVC mat ambulance stretcher adopts separable structure. The upper part can be separated and be used as a simple stretcher.
7. Only one medical staff is needed to push the stretcher into the ambulance.
8. The folding mechanism is controlled by handles, and it must be fixed with the fixing device after the stretcher is loaded onto the ambulance.
9. Loading height: 60cm; wheel size: Φ150mm.

Specifications

Model	Product Size (L × W × H) (cm)		Max Angle of Back	Max Angle of Knee Part	Net Weight (kg)	Load Bearing (kg)	Packing
	High Position	Low Position					Quantity	Size (L × W × H) (cm)	Gross Weight (kg)
YDC-3H	193 × 56 × 88	193 × 56 × 31	65º	15º	45	181	1	201 × 64 × 43	-
