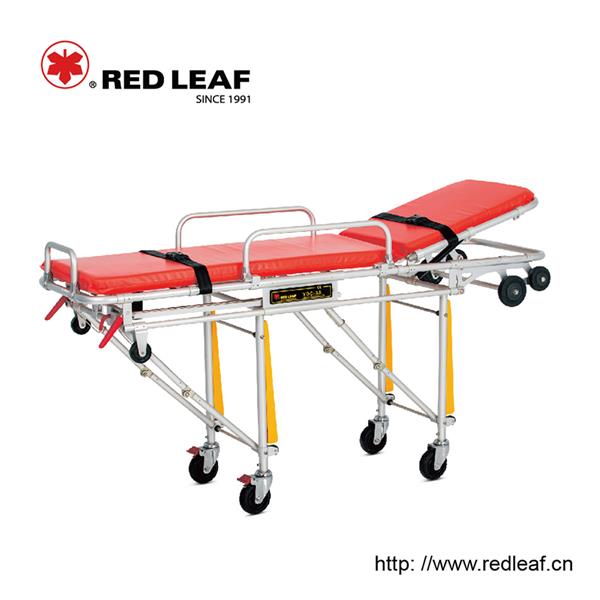

YDC-3A Adjustable Aluminum Alloy Ambulance Stretcher

Features
1. This aluminum alloy stretcher uses high-strength aluminum alloy as the main material, and it’s treated with surface hardening.
2. Angles of backrest and knee part angles are adjustable.
3. Mattress (65mm) of our adjustable ambulance stretcher is seamlessly welded with high-density polyethylene coated nylon, and the mattress is waterproof.
4. This aluminum alloy stretcher is designed with adjustable two-stage I.V. stand, which enjoys maximum adjustable length of 75cm.
6. The adjustable ambulance stretcher is equipped with aluminum alloy adjustable guardrails and two safety belts for the convenience and safety of patient transport.
7. There are two wheels at the loading part with different sizes, and the loading height can be adjusted among 67cm, 65cm and 64cm.

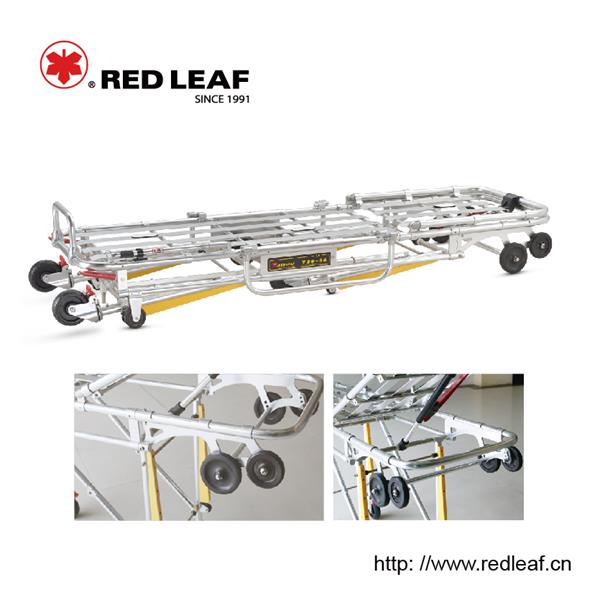

8. The folding mechanism of this aluminum alloy stretcher can be controlled by the handles on both sides. Only one medical staff is needed to push the stretcher into the ambulance.
9. Wheel size: Ø125mm.

Specifications

Model	Product Size (L × W × H) (cm)		Max Angle of Back	Net Weight (kg)	Load Bearing (kg)	Packing
	High Position	Low Position				Quantity	Size (L × W × H) (cm)	Gross Weight (kg)
YDC-3A	195 × 58 × 90	195 × 58 × 26	75º	35	181	1	206 × 63 × 31	45
