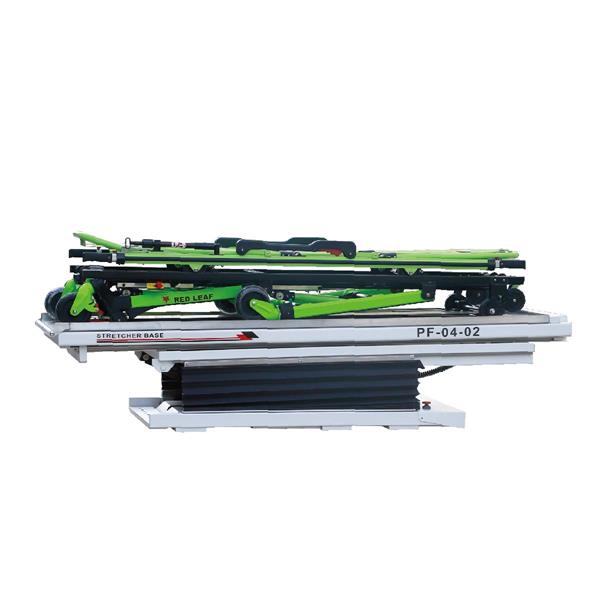

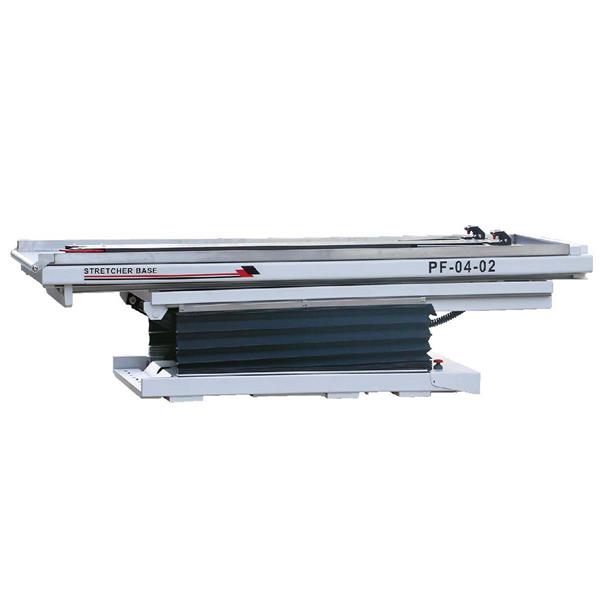

PF-04-02 Adjustable & Extendable Electric Hydraulic Cushioning Stretcher Base

Features
1. This electric stretcher support is controlled by electric hydraulic system. It can slide left, right, forward, backward, downward, etc. by the control panel.
2. The ambulance stretcher support can meet various requirements in different rescue situations with adjustable angle and height, and extractable tray.

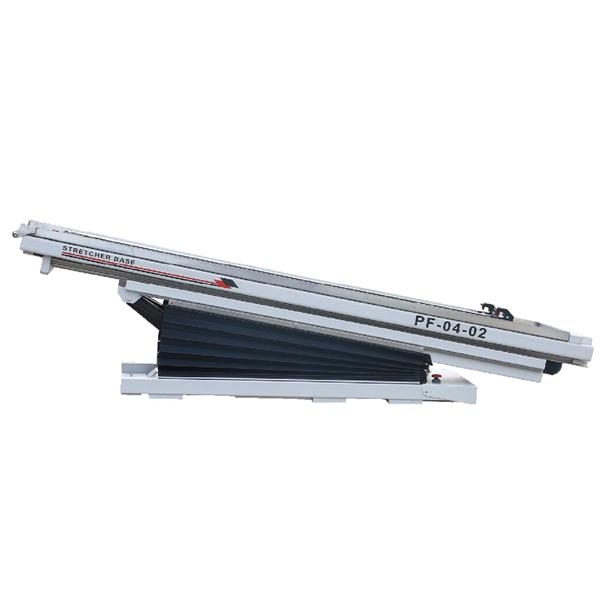

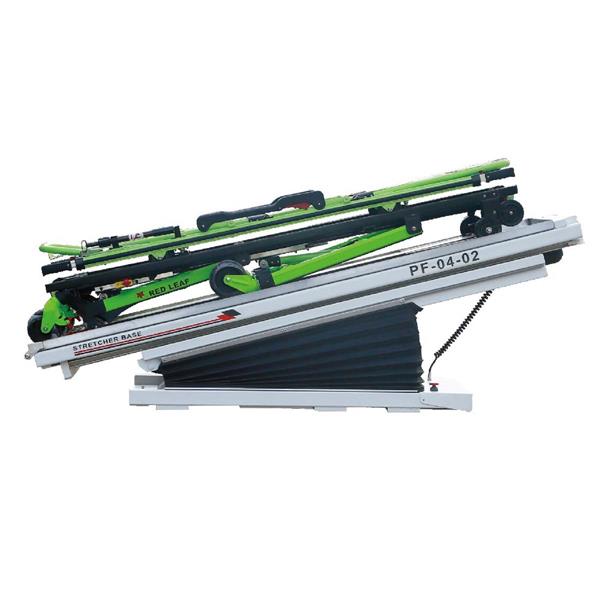

3. The electric stretcher support can lean forward and backward to make the patient or the wounded feel comfortable lying in the stretcher.
4. Shock absorbing function of this ambulance stretcher support helps to reduce the shock, especially secondary trauma, when transferring the patient or the wounded.

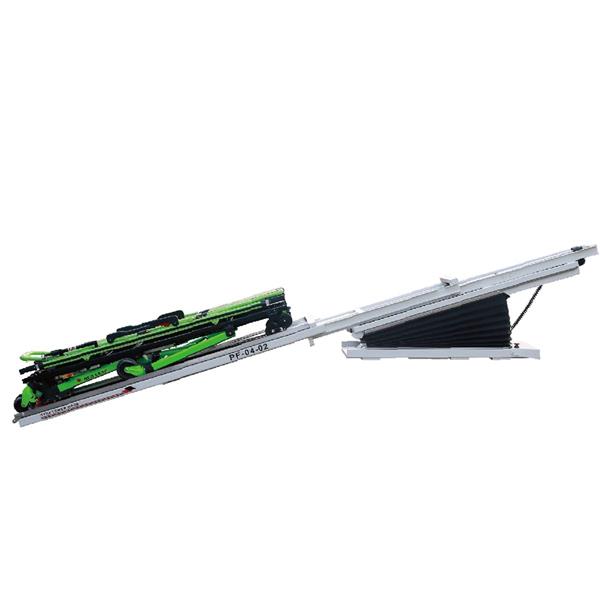

5. The electric stretcher support can stretch to the lowest position, convenient for the loading as well as unloading of the stretcher.
6. The ambulance stretcher support is made of high-strength steel and stainless steel.
7. The stretcher is able to incline forward (13°) and backward (11°), and it’s downward extractable (204cm).
8. The electric stretcher support uses 12V DC power of ambulance.

Specifications

Model	Product Size (L × W × H) (cm)	Inside Size (L × W × H) (cm)	Downward Inclination	Net Weight (kg)	Load Bearing (kg)	Packing
						Quantity	Size (L × W × H) (cm)	Gross Weight (kg)
PF-04-02	227 × 61 × 49.5	227 × 61 × 33	13º	155	220	1	237 × 71 × 60	185
